Features
Our units are designed for use with fan coil units, chilled beams, and other terminal devices, where the flow is controlled via a pressure independent control valve, and isolation, drain, flushing bypass, and flow measurement is required.
Balancing
Balancing valves are valves designed to attain hydraulic balance within such systems by regulating fluid flow and pressure. When selected and installed properly, they equalize system pressure, creating comfortable thermal conditions in the building while optimizing energy and operating costs.
Regulating
The pressure independent control valve is a device composed of an automatic flow rate regulator and a control valve with actuator. The device can adjust flow rate and keep it constant in the presence of changing differential pressure conditions of the circuit in which it is installed.
Flushing
Miniflush is a pre-fabricated, flushing bypass arrangement for balance, control, isolation, and operation
of terminal devices.
It has four operational modes: Supply, Flushing, Back Flushing and Isolation.
Venting
Air vent improves the performance of sealed heating systems by automatically bleeding air from the system.
Miniflush Operational Modes
Our standard builds, PICV and Actuator

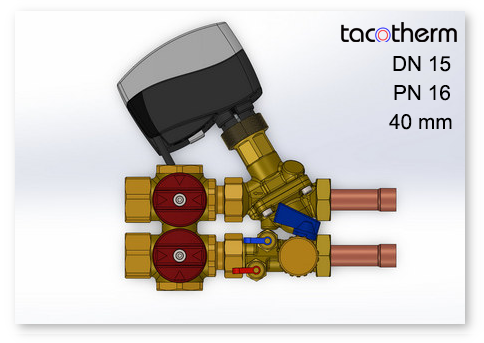

Compact Miniflush 40
Technical data

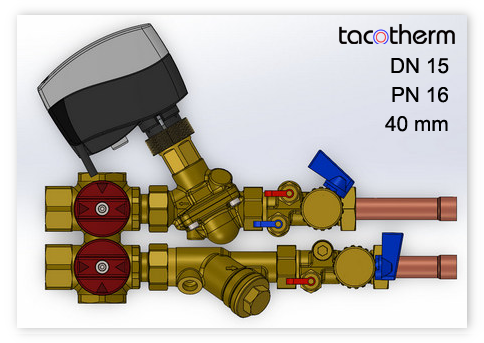

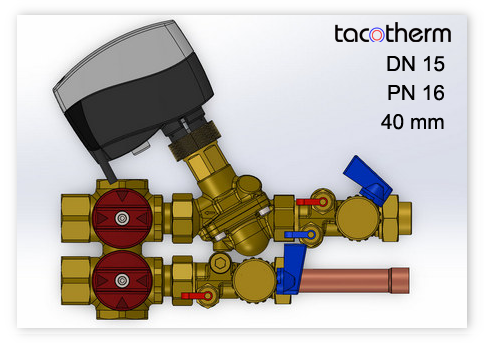

BSRIA BG29 Miniflush 40
Technical data

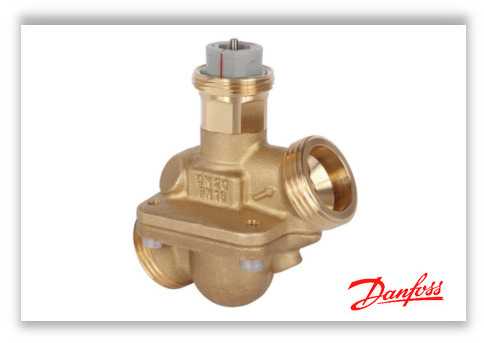

PICV Valve, Actuator
PICV Technical data

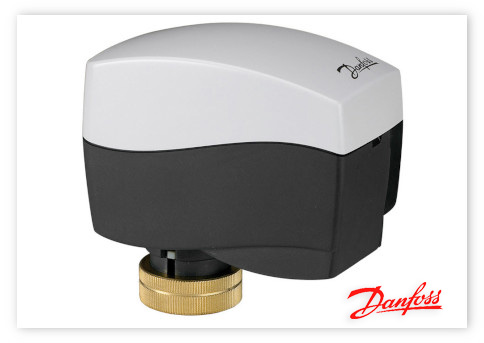

AMV110 NL Technical data
Tacotherm Catalogue
Interactive models of some of our assemblies
Click to view in a new window

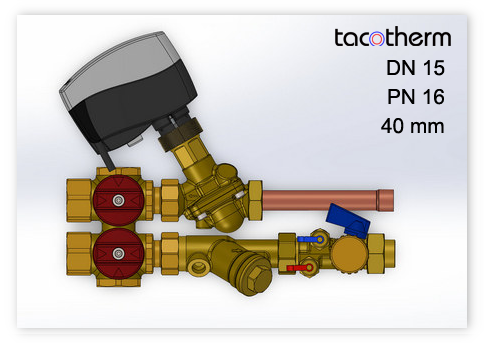

PICV, Measuring Station, Strainer,
T with a Test Point
PICV, Measuring Station,
Strainer,
Air Vent, VZL.
PICV with Test Points,
Measuring Station.
PICV, Measuring Station.
